| Model |

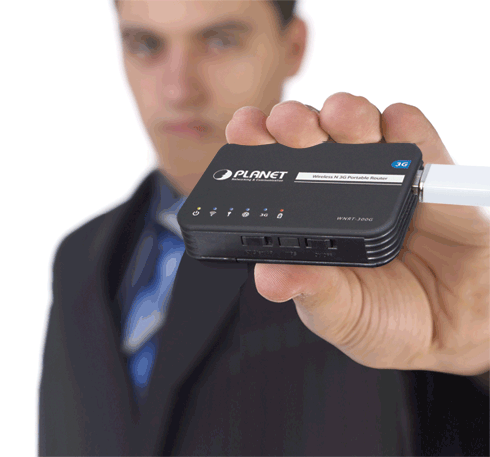

WNRT-300GВ
|
| Hardware Specification |
| Interface |
LAN/WAN: 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port
USB: 1 x USB 2.0 port for UMTS / HSPA 3G Modem |
| Antenna |
Gain: 1 x Internal 2dBi Antenna
Orientation: Omni-directional |
| Button / Switch |
Front panel (from left to right):
Рҝв•“ Mode Selection Switch (Router / Client / AP)
Рҝв•“ WPS Button
Рҝв•“ Power On/Off Switch
Rear panel:
Рҝв•“ Reset button (Push for above 5 seconds to reset to factory
default settings) |
| LED Indicators |
Power, Wireless LAN Active, WPS Active, WAN/LAN Link, 3G Active, Battery Charge |
| Material |
Plastic |
| Dimension (W x D x H) |
88 x 62 x 18 mm |
| Weight |
With battery: 80g
Without battery: 58g |
| Battery |
Built-in Rechargeable Li-ion Battery (3.7V, 1050mAh) |
| Power Requirement |
DC 5V , 1A maximum, connected through mini-USB connector |
| Power Adapter |
AC Input: 100~240V AC (50/60Hz)
DC Output: 5V with max. 1A current |
| Standard Accessory |
Power Adapter x 1, USB Cable x 1, Ethernet Cable x 1, Li-ion Battery x 1, CD-ROM x 1, Quick Guide x 1 |
| Wireless interface Specification |
| Standard |
Compliant with IEEE 802.11b/g/n |
| Frequency Band |
2.4 ~ 2.4835GHz |
| Extend Frequency |
DSSS |
| Modulation Type |
DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK / QPSK / 16-QAM / 64-QAM) |
| Data Transmission Rates |
11n: Up to 150Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic) |
| Transmission Distance |
Indoor up to 100m
outdoor up to 300m (Depending on the environment) |
| Channel |
America / FCC: 2.412~2.462GHz (11 Channels)
Europe / ETSI: 2.412~2.472GHz (13 Channels)
Japan / TELEC: 2.412~2.484GHz (14 Channels) |
| Max. RF Power |
20 dBm (EIRP) |
| Receive Sensitivity |
135M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER |
| Software Features |
| Operation Mode |
гҖҖРҝв•“ AP
Рҝв•“ Router
Рҝв•“ Client
(Switchable by Hardware) |
| Wireless Mode |
AP, WDS, Repeater (WDS+AP), Universal Repeater (AP+Client) |
| Encryption Security |
WEP (64/128-bit) encryption security
WPA-Enterprise / WPA2-Enterprise (TKIP/AES)
WPA-Personal / WPA2-Personal (TKIP/AES)
802.1x Authentication |
| Wireless Security |
Provides wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS (Wi-Fi Protected Setup)
Enable / Disable SSID Broadcast |
| Wireless Advanced |
WMM (Wi-Fi Multimedia): 802.11e Wireless QoS
IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming
Provides Wireless Statistics |
| Internet Connection Type |
Shares data and Internet access, supporting the following internet access types:
Рҝв•“ 3G
Рҝв•“ PPPoE
Рҝв•“ Dynamic IP
Рҝв•“ Static IP
Рҝв•“ PPTP
Рҝв•“ L2TP |
| Firewall |
NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT server supporting Port Forwarding, and DMZ
Built-in firewall with IP address / MAC address / Port / URL filtering
Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS protection
Supports 802.1Q VLAN up to 4 |
| Routing Protocol |
Static / Dynamic (RIP1 and 2) Routing |
| VPN Pass-through |
PPTP, L2TP, IPSec, IPv6 |
| LAN |
Built-in DHCP server supporting static IP address distributing
Supports UPnP, Dynamic DNS
Supports IGMP Proxy
Supports 802.1d STP (Spanning Tree)
IP / MAC-Based Bandwidth Control |
| System Management |
Web-Based (HTTP) management interface
SNTP time synchronize
Easy firmware upgrade
System Log supports Remote Log |
| Standards Conformance |
| IEEE Standards |
IEEE 802.11n (1T1R, up to 150Mbps)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Flow Control |
| Others Protocols and Standards |
CSMA / CA, CSMA / CD, TCP / IP, DHCP, ICMP, NAT, PPPoE, SNTP |
